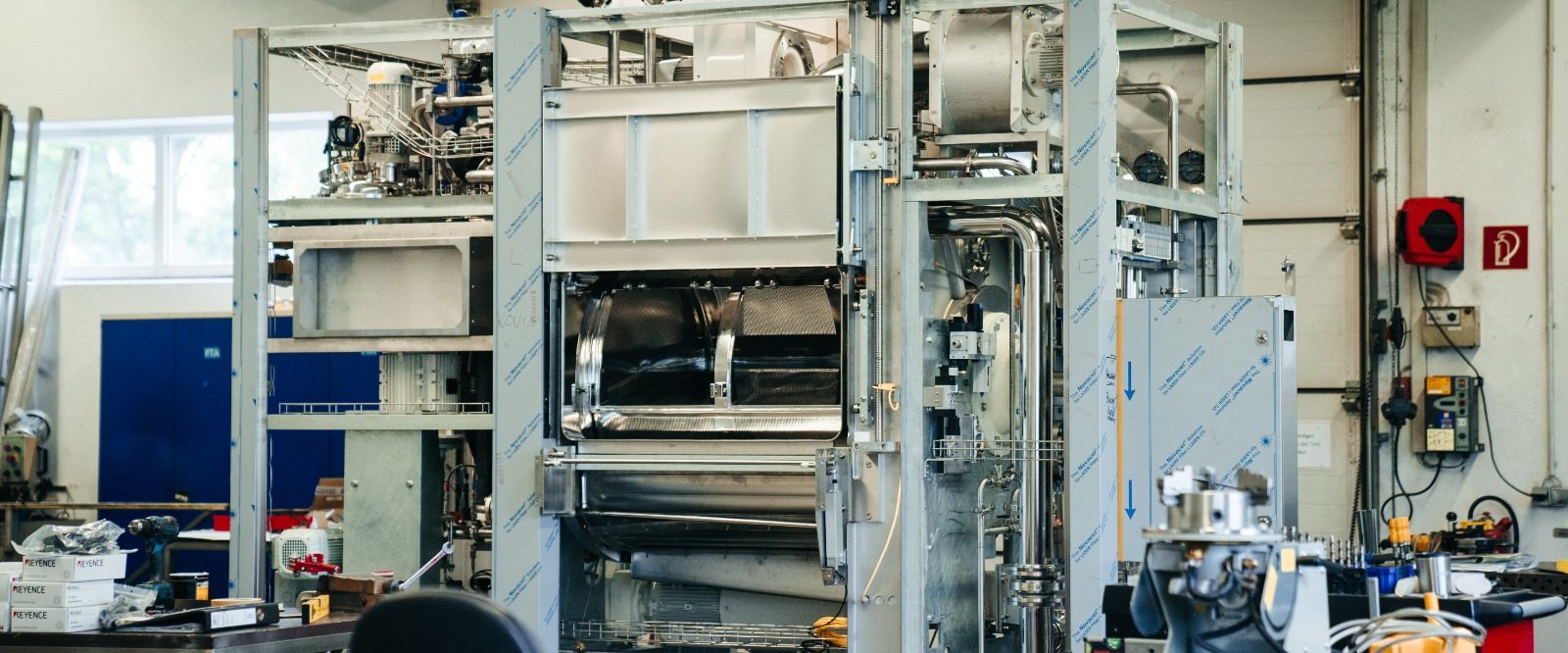

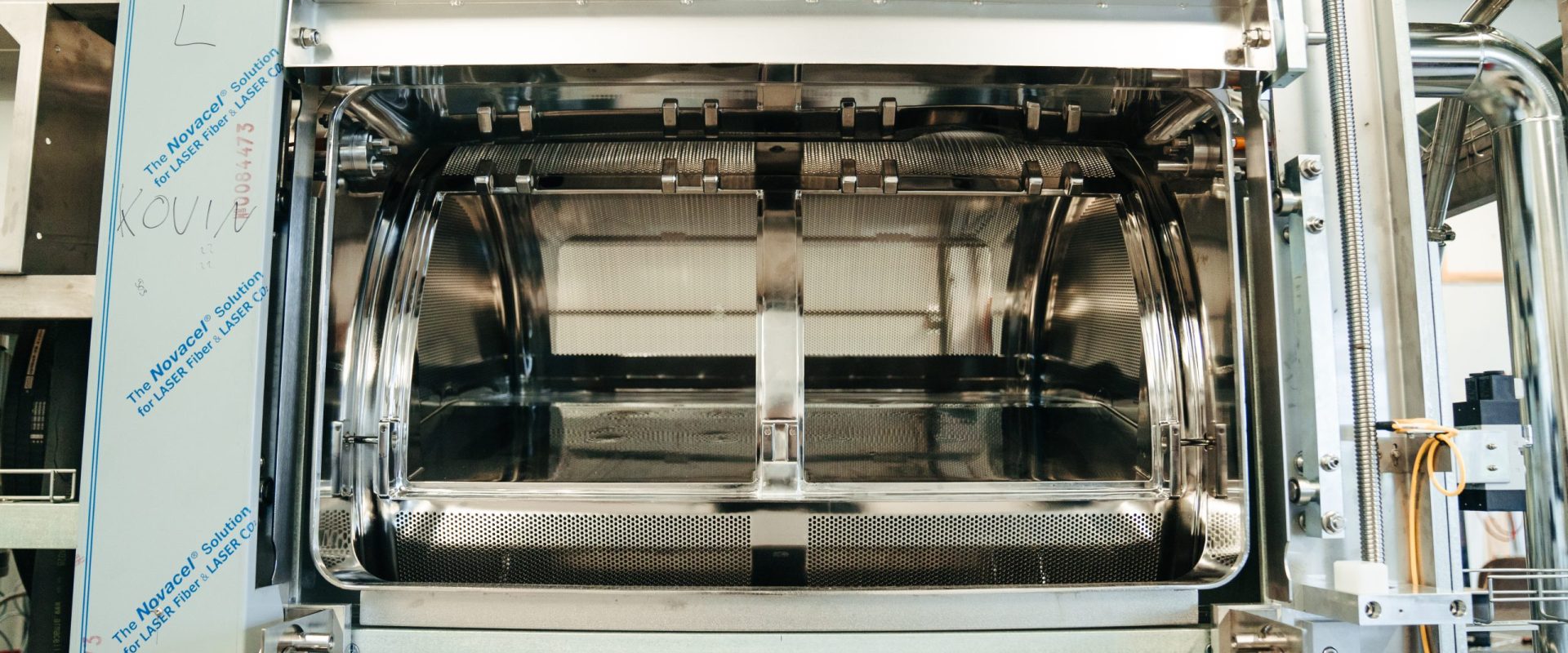

Washer WST
rinse. clean. treat. siliconize. dry.
The final product quality of pharmaceutical rubber or plastic components is linked to the cleaning process and the chosen treatment (e.g. siliconization). PTA washing machines are designed to meet different capacity requirements for a fully automated cleaning and siliconization of rubber and plastic components (e.g. closure elements for vials, plungers and needle shields).
With our pass-through machine design, it is possible to integrate the washer as a partition wall into the production area to separate loading and unloading side. The washer type WST is available in different loading capacities:
- WST-250 PT: Loading capacity ≤ 50 kg
- WST-400 PT: Loading capacity ≤ 100 kg
- WST-850 PT: Loading capacity ≤ 180 kg
- WST-1000 PT: Loading capacity ≤ 240 kg
- WST-1600 PT: Loading capacity ≤ 300 kg
The washers are used in the pharmaceutical and food industry.
Sterile WST
rinse. clean. treat. siliconize. sterilize. dry.
The Sterile WST washer with its patented high-pressure cleaning process or DIP (Direct Impact Cleaning) guarantees the removal of particulate and a significant reduction of pyrogens. The sterilization processes a sub-aqual/steam process. With our special drying programs for lyo products it is possible to achieve a consistent and low residual humidity.
Uni Washer
rinse. clean. treat. siliconize. dry.
The Uni washer is designed to handle mid-sized production capacities with short cycle times. The loading and unloading process for the components (pre-loaded as bulk goods in boxes) is fully automated via a roller conveyor. The Uni Washer was developed together with a world leading pharmaceutical company to ensure a fast and high-quality process of a high volume production.
DS – Series
rinse. clean. treat. siliconize. dry.
The currently smallest washing machine is the DS series. It is designed for smaller production capacities. Its loading capacity is ≤ 20 kg (loading volume of max. 40L). The functions of the DS are identical to those of the WST. The small parts are loaded and unloaded into the machine from the same side.
Looking for special solution?
You need something special? No problem. Send us an email or give us a call. We’ll be happy to take care of your request.
